Pictorial: Preparing a Display Module

posted on 04 May 2011 | display module

To use a display without a mating 4 pin connector, the cable must be modified.

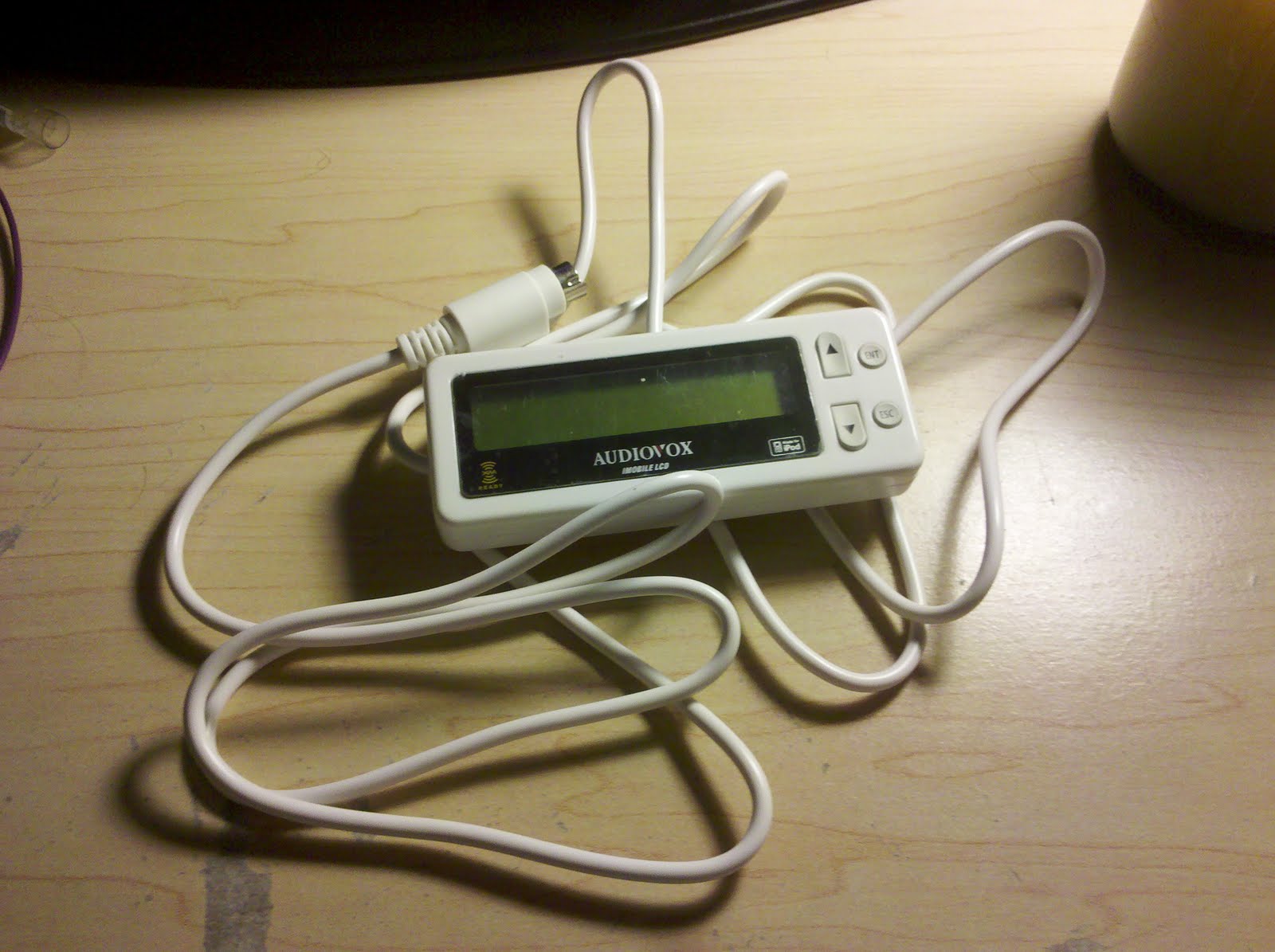

A module before modification

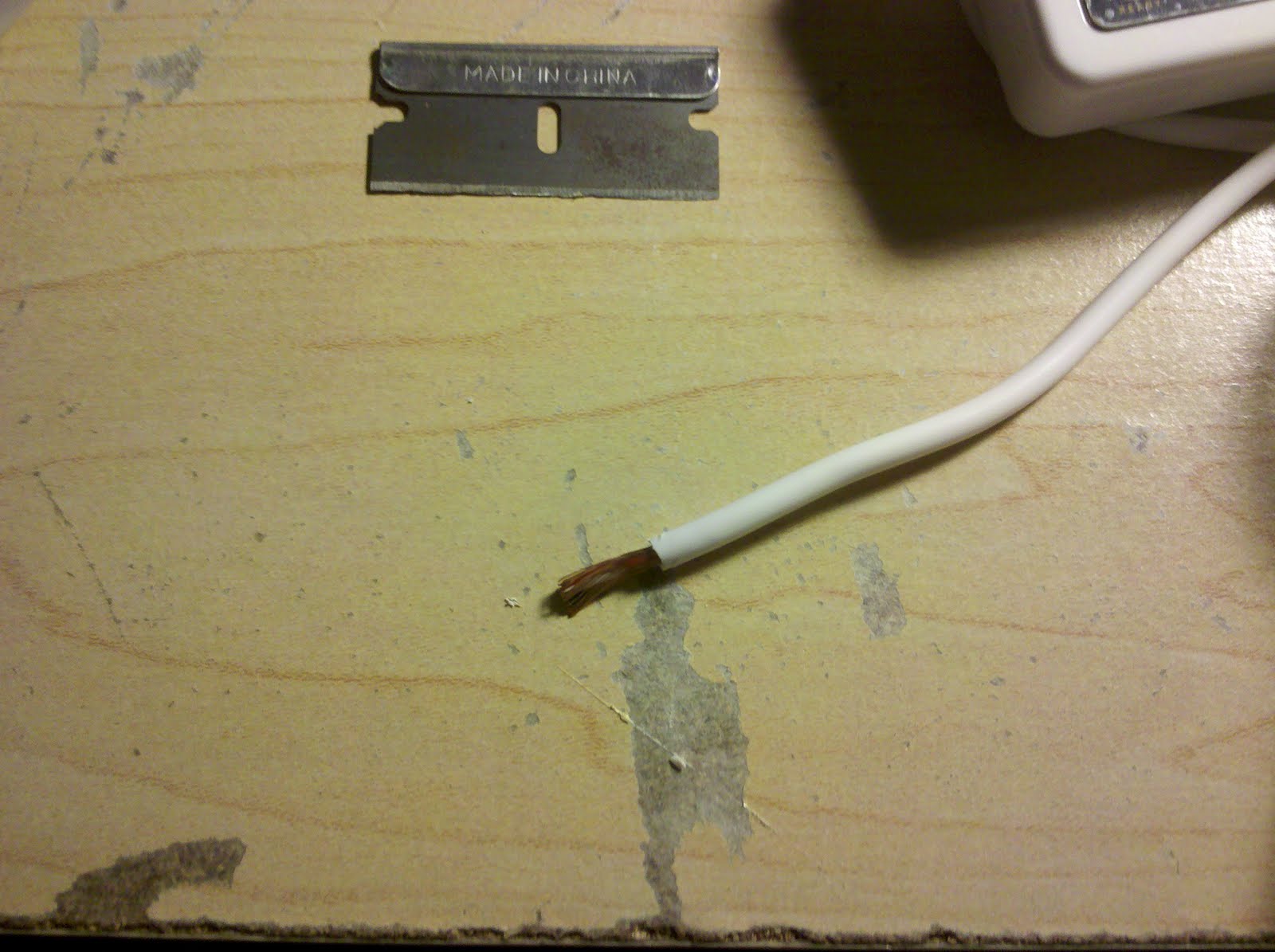

Remove the connector and strip the cable

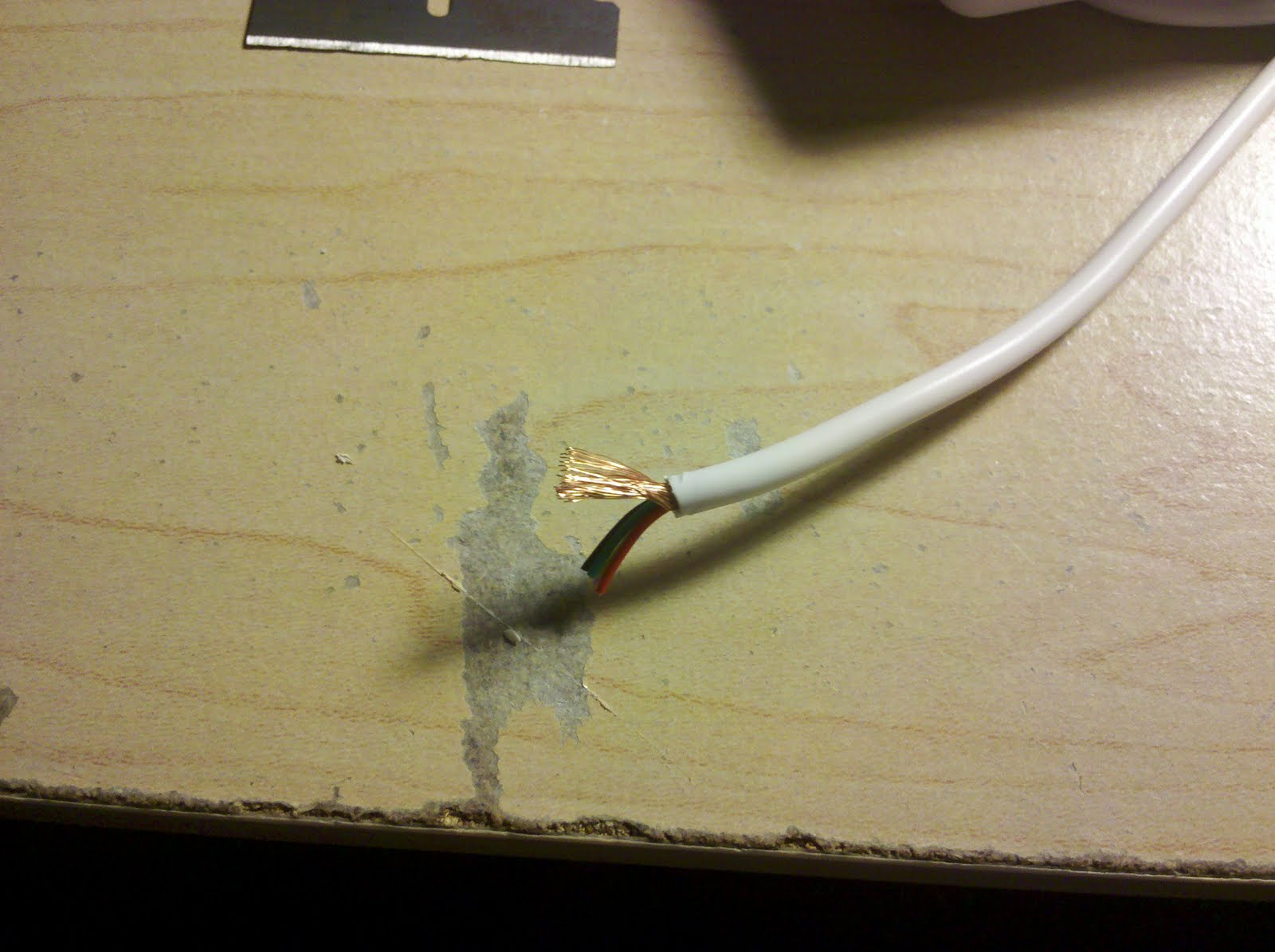

Separate the copper shield from the power and data wires

Remove the copper shield

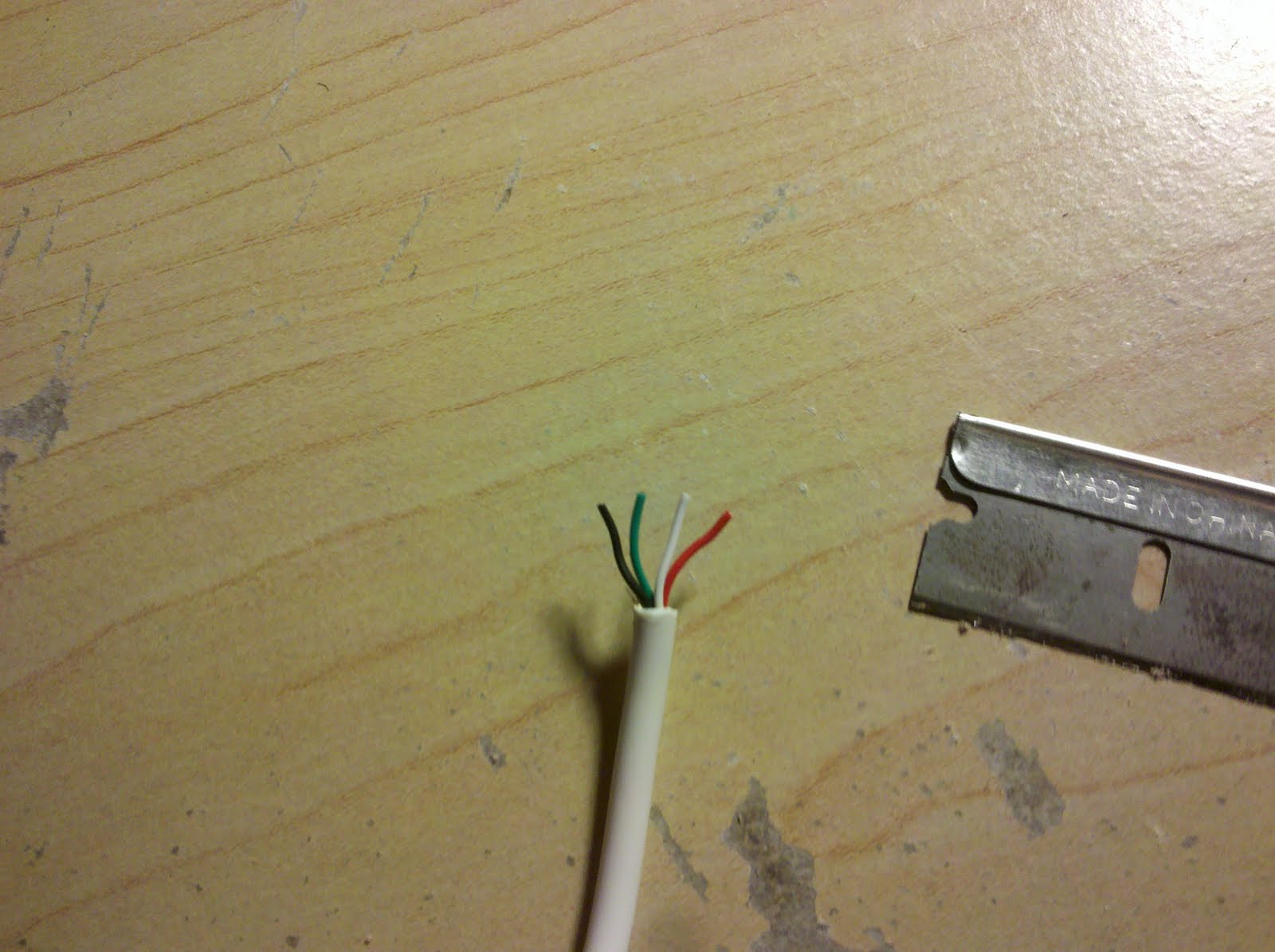

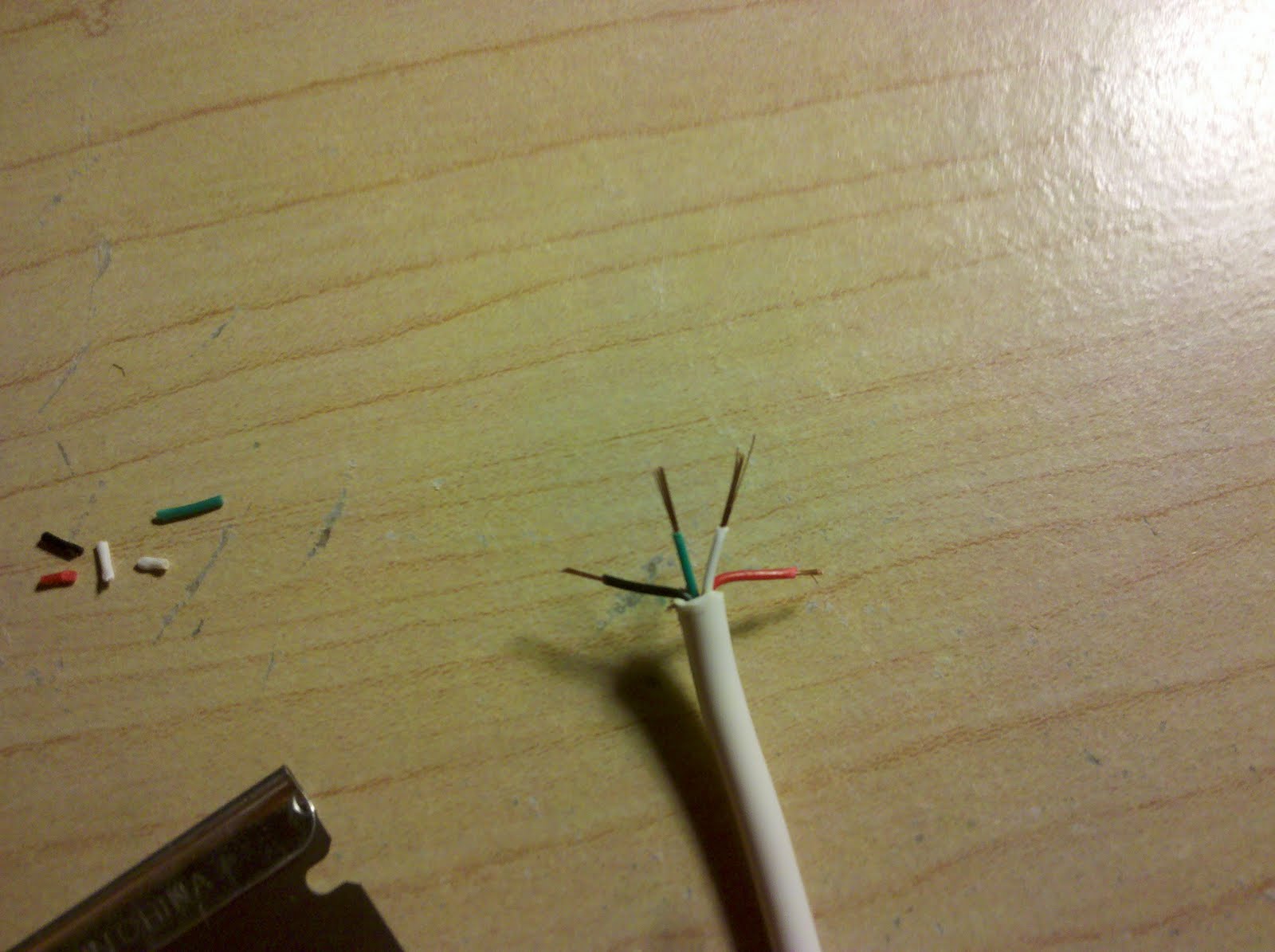

Strip the wires

Red - 12v, Black - GND, Green - Rx, White - Tx

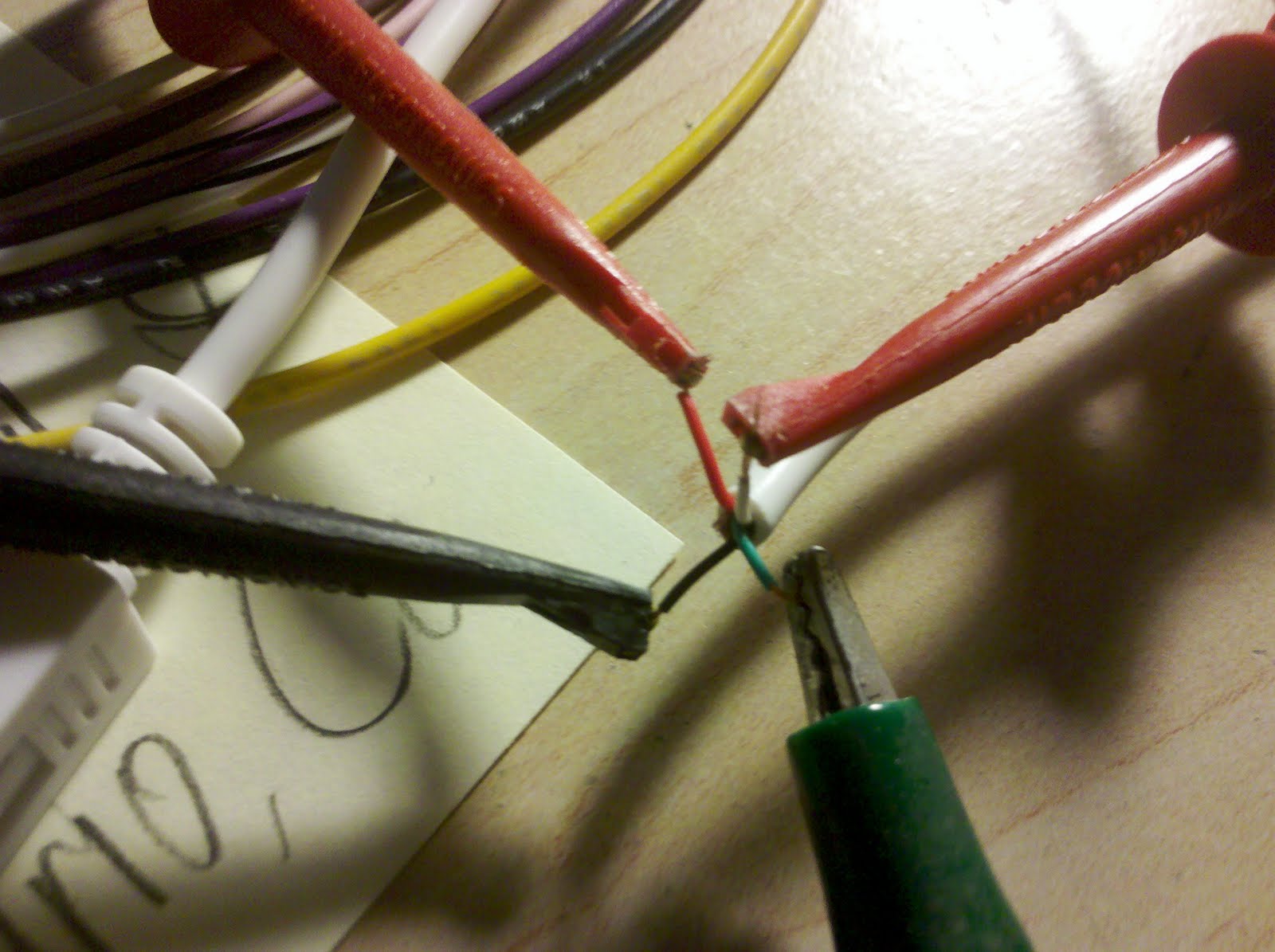

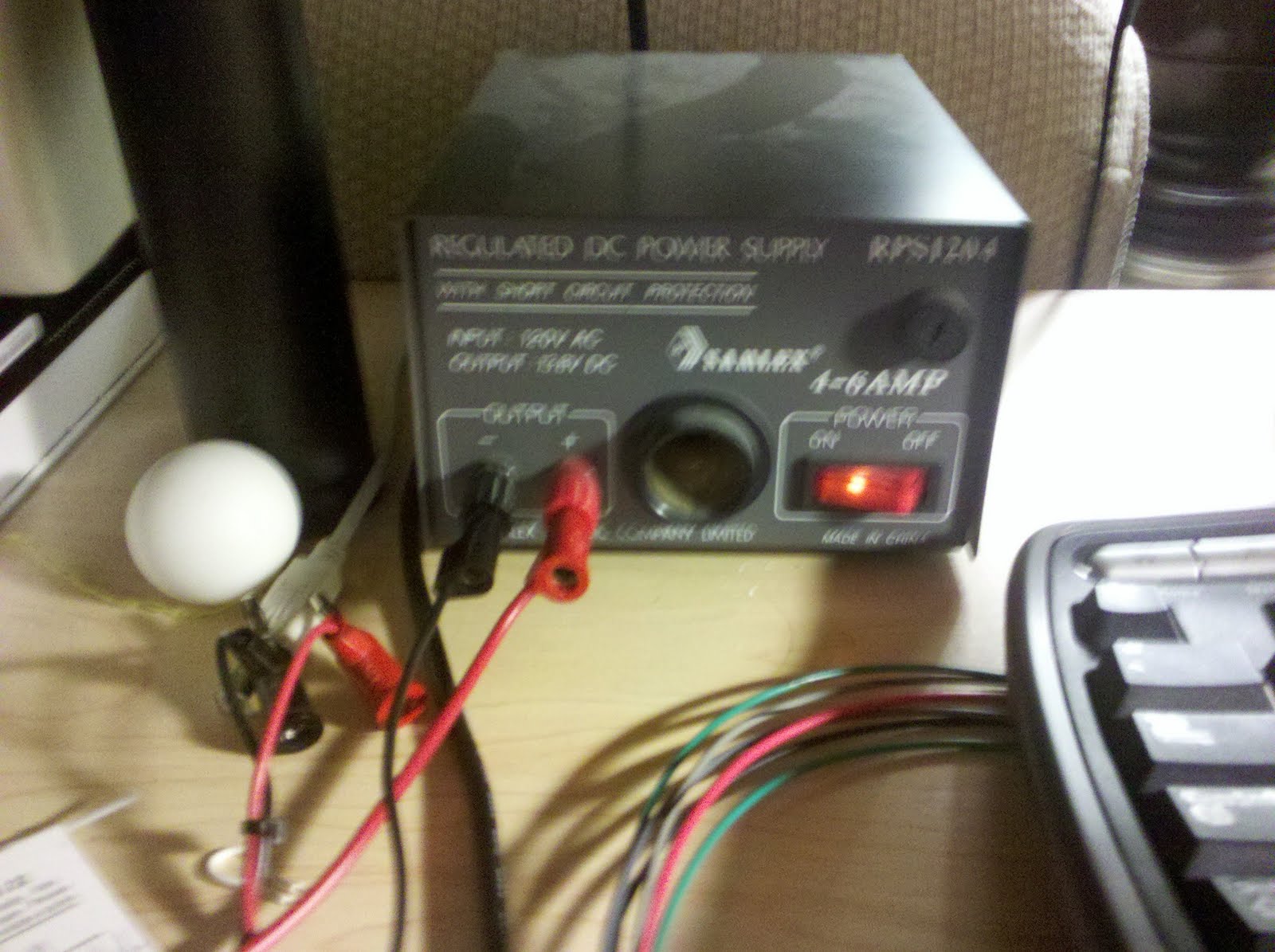

Apply power

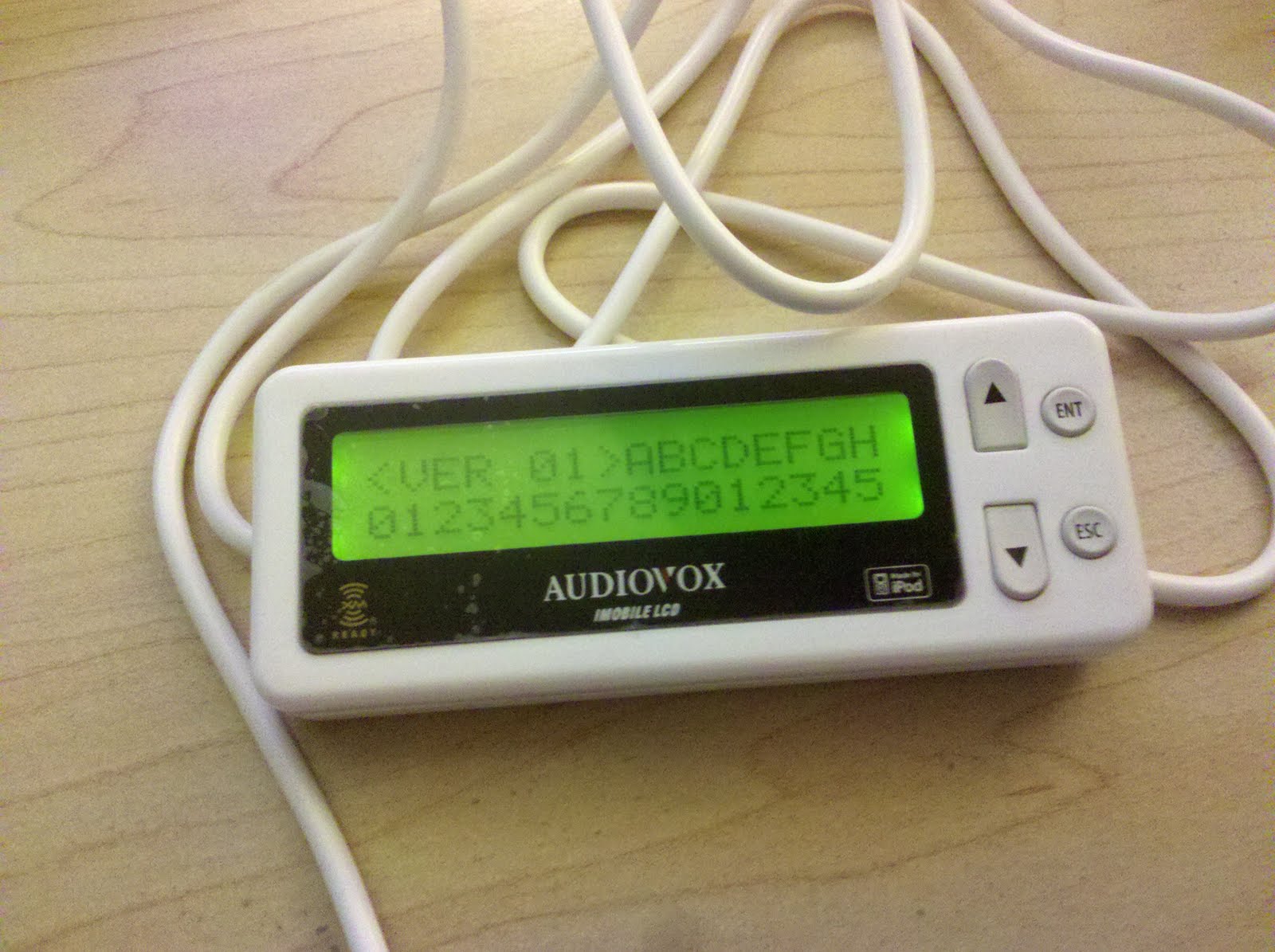

First power initialization screen
